Push button rough-in valve

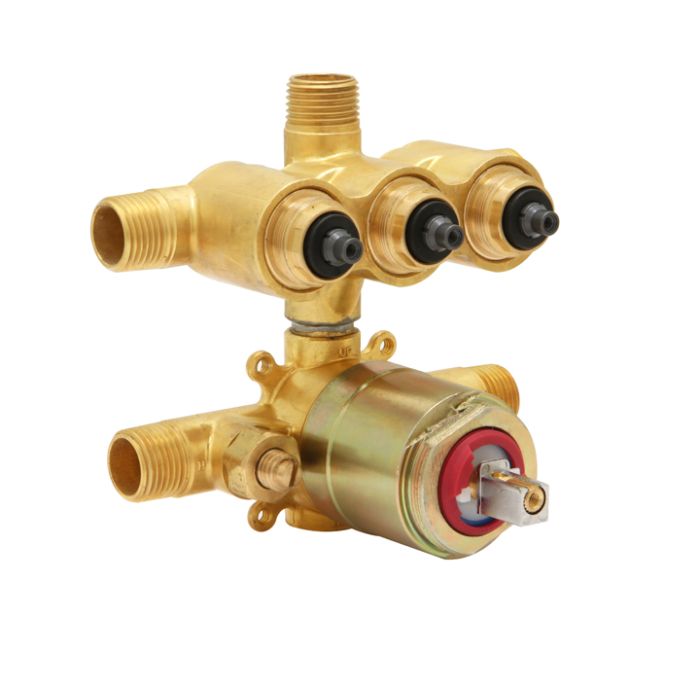

Push Button Rough-in Pressure Balance Shower Mixing Valve.
High quality forged brass rough-in shower valve with built-in push button diverter valve. The Huntington Brass push button diverter rough-in shower valve will allow you to switch between the shower and multiple accessories with a push of the button. This rough-in valve opens the design possibilities to use many different types of bath accessories from an extra showerhead to a multi setting hand shower for the complete spa shower.

Features:
• Three button, three port outlet.
• Back to back installation.
• High quality forged brass valve and diverter body.
• Service stops located on each side of the valve for local water supply shut off.
• Adjustable hot temperature anti-scald limit stop.
• Completely rebuildable with replaceable ceramic disc pressure balance cartridge, push button cartridges and service stops.
• Rough-in mud guard included.
• Multiple anchor points to secure valve to inside of wall.
• All buttons can be pressed on simultaneously.

• Due to the valves flow restrictions and depending on your application it might not be recommended to use all three buttons at the same time.

Specification Sheet	Installation Instructions
